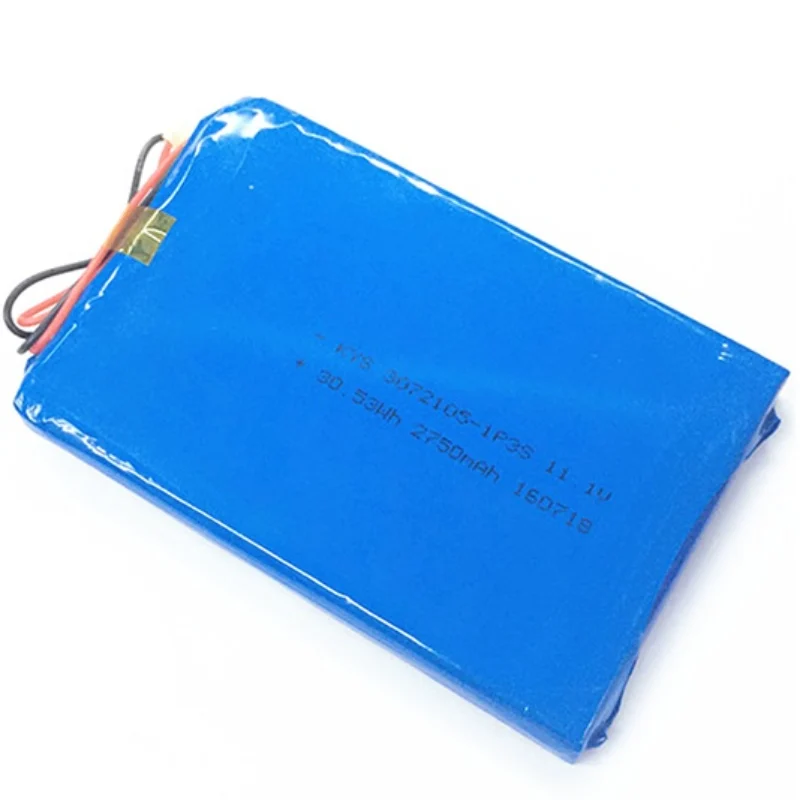

Home / 3075105-3S Lithium Battery Pack
The 3075105-3S Lithium Battery Pack offers 2750mAh capacity with 11.1V standard voltage, providing stable power that can support medical equipment as well as other portable devices. Its compact soft-pack design and rechargeable capability make it suitable for applications where reliable and space-efficient energy is preferred.
- Rated Capacity: 2750mAh
- Standard Voltage: 11.1V
- Charging Current: 1.0A
- Dimensions: 9*75*110mm
- Applicable Type: Medical Devices
Get Free Quote
Back to Product List
Product Details
Product Features
- Ultra-thin and compact design: Only 9mm thick, easily embedded in portable medical devices, saving space.
- Medical-grade safety standards: Polymer soft-pack structure; in case of abnormalities, it will only bulge but not explode, ensuring safer use.
- Stable 11.1V output: Three battery cells connected in series ensure a stable voltage platform, guaranteeing accurate operation of medical devices.
- Long-lasting battery life: 2750mAh capacity meets the needs of long-term monitoring or diagnosis.
- Multiple international certifications: Certified by KC, CB, UN38.3, TUV, CQC, MSDS, CE, IEC62133, etc., ensuring reliable quality.
- Customization available: Size and parameters can be flexibly adjusted according to device space and capacity requirements.
- Low internal resistance design: 60 milliohm internal resistance, high discharge efficiency, and faster device response.
- Pre-charged at the factory: 12.0V factory voltage, ready to use out of the box, no need to wait for charging.
Application Scenarios
- Portable medical devices (monitors, diagnostic instruments)
- Rehabilitation and physiotherapy equipment
- Handheld medical terminals
- Other mobile devices with strict requirements for thickness and safety
Technical Parameters
| Model | 3075105-3S |
| Rated Capacity | 2750mAh |
| Customization | Yes |
| Standard Voltage | 11.1V |
| Charging Current | 1.0A |
| Cell Size | 9*75*110mm |
| Finished Product Size | 9*75*110mm |
| Applicable Type | Medical Equipment |
| Product Certifications | KC, CB, UN38.3, TUV, CQC, MSDS, CE, IEC62133 |
| Charging Time | 2h |
| Battery Type | Polymer Soft Pack |
| Rechargeable | Yes |
| Material | Lithium Cobalt Oxide |
| Charging Voltage | 12.6V |
| Storage Temperature | Room Temperature |
| Operating Temperature | Room Temperature |
| Net Weight | 60g |
| Shelf Life | 12 Months |
| Cell Standard | National Standard |
| Internal Resistance | 60 milliohms |
| Factory Voltage | 12.0V |
| Load Voltage | 12.6V |
