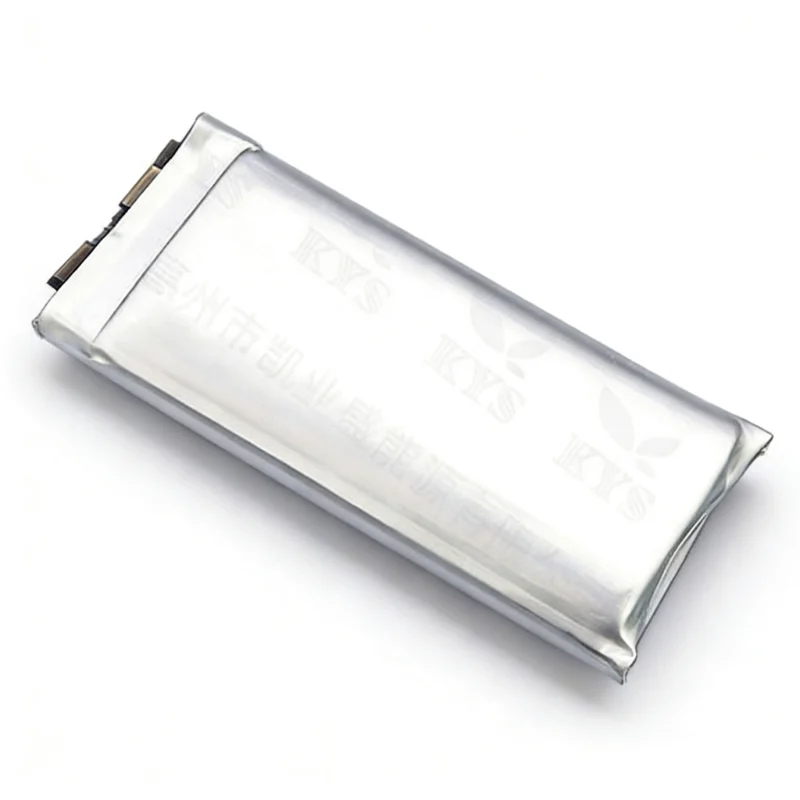

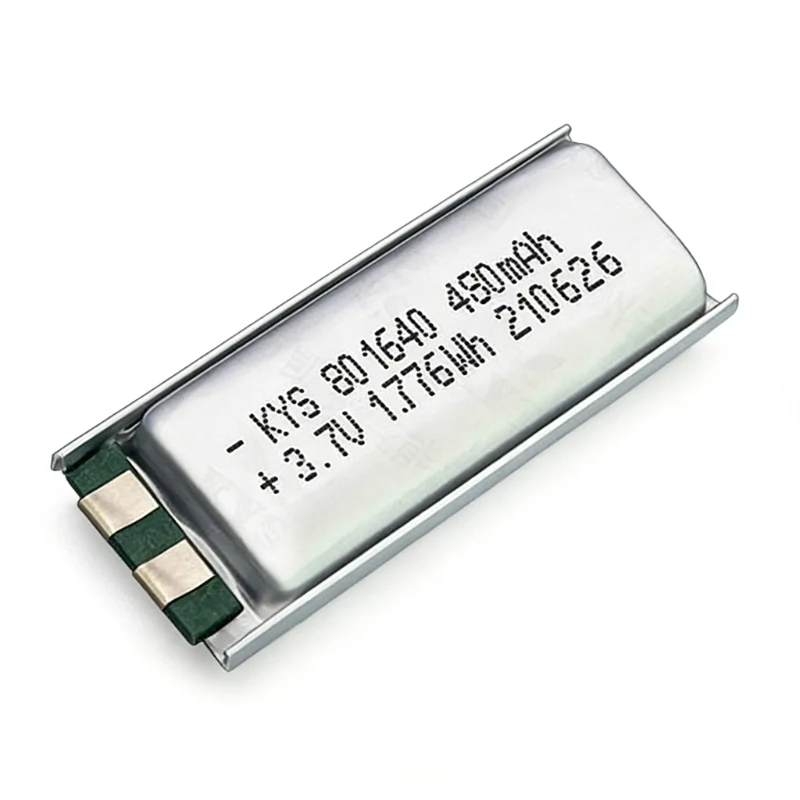

The 801640 polymer soft-pack battery is a compact and reliable power solution for portable electronics. With a 480mAh capacity and up to 3A discharge current, it delivers stable and efficient performance. Built with high-quality lithium cobalt oxide, it ensures safe charging and long-lasting use. Its slim design makes it ideal for remote controls, handheld devices, and other small electronic products, providing consistent power wherever it’s needed.
- Model: 801640
- Rated Capacity: 480mAh
- Standard Voltage: 3.7V
- Charging Current: 0.48A
- Discharging Current: 3A
- Dimensions: 8*16*40mm
- Applications: Nebulizers, Beauty Devices, Electronic Products
Get Free Quote
Back to Product List
Product Details
Product Features
- Customization Supported: Can be customized according to customer needs
- High Power: Up to 20C discharge
- Fast Charging: Up to 3C charging
- Long Lifespan: Meets the requirements for long-term product use
- Multi-Material System: Covers LCO, NCM, NCA, LFP, and other material systems
- High Safety: Passes safety performance tests
- Sufficient Capacity: Meets product design capacity requirements
- High Temperature Resistance: Operating temperature range -20℃ ~ 80℃
Application Scenarios
- Electronic Atomizers
- Voice Recorders
- Headphones
- Beauty Devices
Technical Parameters
| Model | 801640 |
| Rated Capacity | 480mAh |
| Customization | Yes |
| Standard Voltage | 3.7V |
| Discharge Current | 3A |
| Cell Size | 8*16*40mm |
| Applicable Type | Electronic Products |
| Charging Time | 1 hour |
| Battery Type | Polymer Soft Pack |
| Rechargeable | Yes |
| Material | Lithium Cobalt Oxide |
| Charging Voltage | 4.2V |
| Storage Temperature | Room Temperature |
| Operating Temperature | Room Temperature |
| Net Weight | 9g |
| Shelf Life | 12 Months |
| Cell Standard | National Standard |
| Internal Resistance | 65 milliohms |
| Factory Voltage | 3.80V |
| Load Voltage | 4.2V |
