Home / KYS2037DH Standard Smart Lithium Battery Pack
High-performance intelligent lithium battery pack featuring stable output, high energy density, and advanced safety protection. Equipped with SMBus communication and precise power management, it ensures reliable performance for portable, industrial, and medical applications.
- Nominal Voltage: 7.2 V
- Rated Capacity: 6600 mAh
- Typical Capacity: 6900 mAh
- Internal Resistance: <200 mΩ @ 1kHz (25°C)
- Max. Charge Current: 3.3 A
- Max. Charge Voltage: 8.4 V
- Max. Discharge Current: 8.0 A
Get Free Quote
Back to Product List
Product Details
Product Features
- 2S2P Removable Lithium-ion Battery Pack
- Complies with regulations in multiple regions worldwide
- Standard SMBus v1.1 interface
- Integrated LED State of Charge (SOC) indicator
- Uses Panasonic cells, boasting the highest energy density and stability on the market, meeting JEITA charging optimization rules
- Comprehensive safety protection features, including overcharge, over-discharge, overcurrent, over-temperature, and short circuit protection
- Equipped with balancing function to effectively improve battery life
- TI Precise Battery Calculation
Product Application Areas
- Class III Medical Devices
- Precision Measuring Instruments
- Industrial Computers
- Non-destructive Testing Equipment
- Portable industrial and medical devices, etc.
Technical Parameters
| Overview | |
| Initial Shipment Capacity | 20%~30% |
| Certifications | CE/FCC/IEC62133/UN38.3/REACH/RoHS/ (EU) 2023/1542/CCC |
| Operating Temperature | 0°C ~ 50°C (Charge) -20°C ~ 60°C (Discharge) |
| Storage Temperature | -20°C ~ 50°C (Max) -20°C ~ 25°C (Recommended) |
| Electrical Performance | |
| Nominal Voltage | 7.2V |
| Rated Capacity | 6600mAh |
| Typical Capacity | 6900mAh |
| Internal Resistance | <200mΩ @ 1kHz at 25°C |
| Max. Charge Current | 3.3A |
| Max. Charge Voltage | 8.4V |
| Max. Discharge Current | 8.0A |
| Cycle Life | 500 cycles >80% of rated capacity (Test standard: CC/CV charge 3.3A/8.4V; CC discharge 1.32A to 5.0V @ 25°C) |

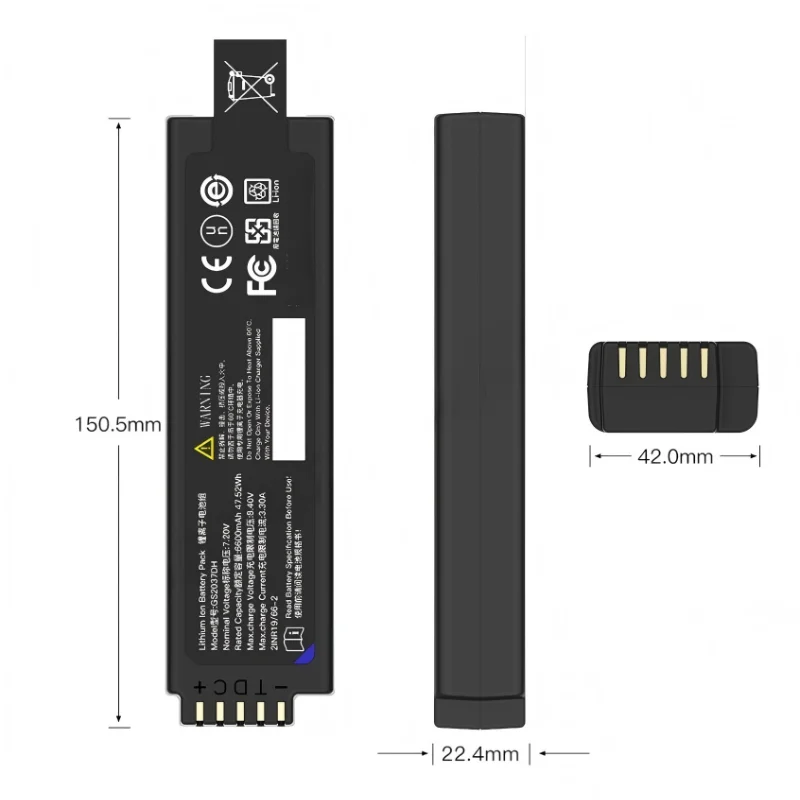

| Size Specifications | |
| Length | 150.5mm ± 0.3mm |
| Width | 42.0mm ± 0.3mm |
| Thickness | 22.4mm ± 0.3mm |
| Weight | 240g±10g |
| Interface |  |
