Home / KYS2054HH Standard Smart Lithium Battery Pack
This compact 14.4V lithium battery pack uses high-quality Panasonic cells to provide stable output and dependable performance. Designed with SMBus communication, LED status indication, and advanced protection systems, it offers a reliable power solution for portable, medical, and industrial electronic devices.
- Nominal Voltage: 14.4 V
- Rated Capacity: 6600 mAh
- Typical Capacity: 6900 mAh
- Internal Resistance: <200 mΩ @ 1kHz (25°C)
- Max. Charge Current: 4.83 A
- Max. Charge Voltage: 16.8 V
- Max. Discharge Current: 8.0 A
Get Free Quote
Back to Product List
Product Details
Product Features
- 4S2P removable lithium-ion battery pack
- Complies with regulations in multiple regions worldwide
- Standard SMBus v1.1 interface
- Integrated LED State of Charge (SOC) indicator
- Uses Panasonic cells, boasting the highest energy density and stability on the market
- Meets JEITA charging optimization rules
- Comprehensive safety protection features, including overcharge, over-discharge, overcurrent, over-temperature, and short circuit protection
- Equipped with balancing function to effectively improve battery life
- TI precise power calculation
Product Application Areas
- Class III Medical Devices
- Precision Measuring Instruments
- Industrial Computers
- Non-destructive Testing Equipment
- Portable industrial and medical devices, etc.
Technical Parameters
| Overview | |
| Initial Shipment Capacity | 20%~30% |

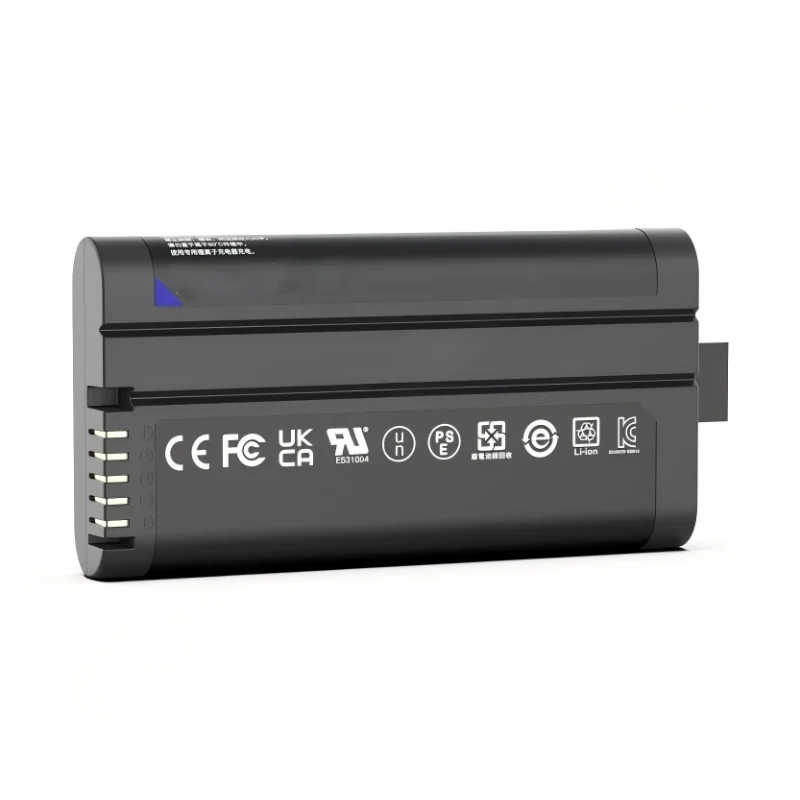

| Certifications | CE / FCC / IEC62133 / UN38.3 / PSE / UKCA / UL2054 / KC / BSMI/ GBT28164 / REACH / RoHS / (EU) 2023 / 1542 / CCC |
| Operating Temperature | 0°C ~ 50°C (Charge) -20°C ~ 60°C (Discharge) |
| Storage Temperature | -20°C ~ 50°C (Max) -20°C ~ 25°C (Recommended) |
| Electrical Performance | |
| Nominal Voltage | 14.4V |
| Rated Capacity | 6600mAh |
| Typical Capacity | 6900mAh |
| Internal Resistance | <200mΩ @ 1kHz at 25°C |
| Max. Charge Current | 4.83A |
| Max. Charge Voltage | 16.8V |
| Max. Discharge Current | 8.0A |
| Cycle Life | 500 cycles >80% of rated capacity (Test standard: CC/CV charge 3.3A/16.8V; CC discharge 1.32A to 10.0V @ 25°C) |

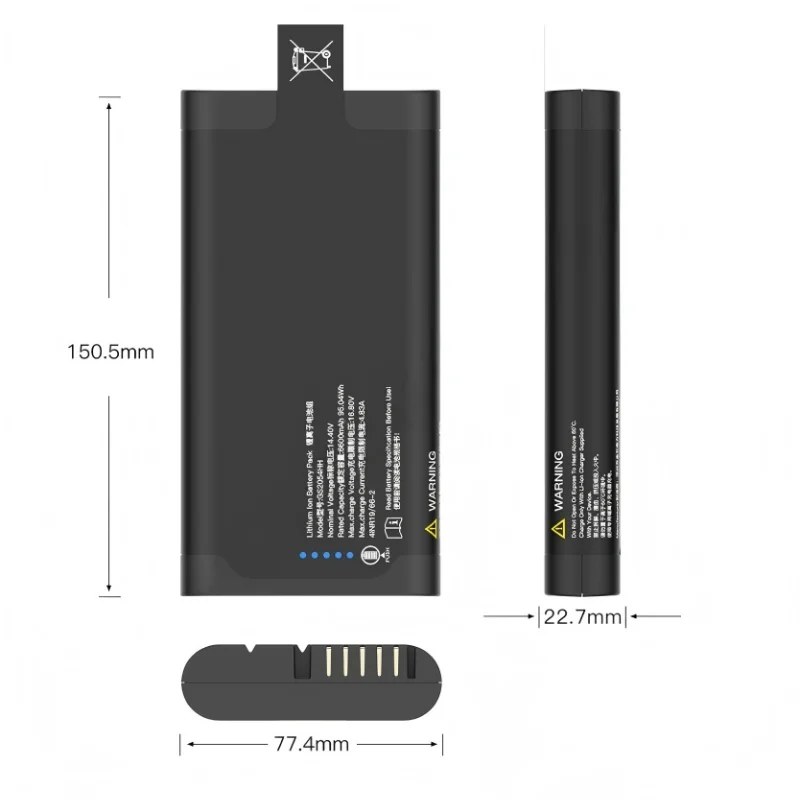

| Size Specifications | |
| Length | 150.5mm ± 0.3mm |
| Width | 77.4mm ± 0.3mm |
| Thickness | 22.7mm ± 0.3mm |
| Weight | 445g±10g |
| Interface |  |
