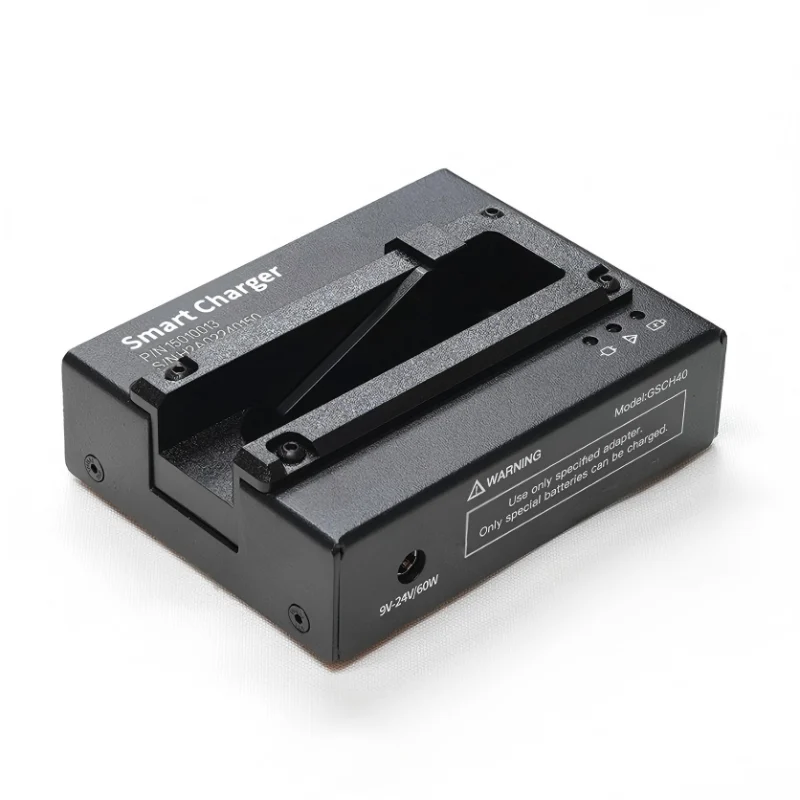

The KYSCH40 is a smart battery charger featuring a wide 9-24VDC input range and SMBus v1.1 communication. It supports 1-4 series smart batteries with adaptive 0-16.8V output and up to 4A current. LED indicators show charging status, while JEITA optimization ensures safe, efficient charging.
- Input Power: ≥60 W
- Output Voltage: 0~16.8 V (Adaptive for 1~4 series smart batteries)
- Output Current: 0~4 A
- Max Charging Power: 50.4 W
- Charging Efficiency: > 85%
- Certifications: CE/FCC
Get Free Quote
Back to Product List
Product Details
Product Features
- Wide voltage input/output
- Standard SMBus v1.1 interface
- LED charging status indicator
- Complies with JEITA charging optimization rules
- Scientific charging curve for efficient charging and guaranteed battery life
- Intelligent battery identification, compatible with all KYS smart batteries
Technical Parameters
| Overview | |
| Input Interface | 2.1φ×5.5φ DC Port |
| Output Interface | 5PIN Blade-type Smart Battery Connector |
| Operating Temperature | -30°C ~ 70°C |
| Recommended Charging Temperature | 0°C ~ 50°C |
| Electrical Performance | |
| Input Voltage | 9~24VDC (Input voltage should be 1V higher than the battery’s maximum required charging voltage) |
| Input Power | ≥60W |
| Output Voltage | 0~16.8V (Adaptive for 1~4 series smart batteries) |
| Output Current | 0~4A |
| Max Charging Power | 50.4W |
| Charging Efficiency | > 85% |
| Certifications | CE/FCC |
| Dimensions & Specifications | |
| Length | 111.0mm ± 0.3mm |
| Width | 84.0mm ± 0.3mm |
| Height | 35.0mm ± 0.3mm |
| Weight | 200g ± 10g |
| LED Indication | |
| Power-on Indication | Blue LED steady on |
| Normal Charging | Green LED flashing |
| Battery Fully Charged | Green LED steady on |
| Charging Fault | Red LED steady on |
| Matching Adapter (Optional) | |
| Model | KYSP24V060W55210 |
| Output Voltage/Current | 24V / 2.5A |
| Output Power | 60.0W |
