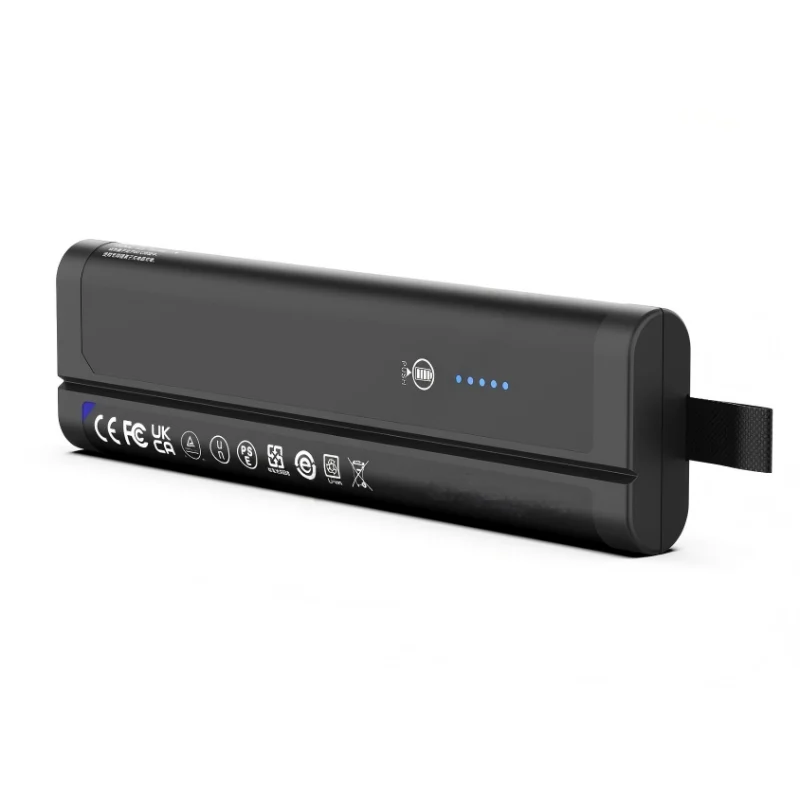

Home / KYS2040IM Standard Smart Lithium Battery Pack
High-performance intelligent lithium battery pack featuring stable output and Panasonic cells for superior energy density. Equipped with SMBus interface and LED indicator, it ensures accurate power management and reliable operation. Built-in multi-protection system enhances safety and extends service life for industrial and portable devices.
- Nominal Voltage: 10.8 V
- Rated Capacity: 9000 mAh
- Typical Capacity: 9300 mAh
- Internal Resistance: <200 mΩ @ 1kHz (25°C)
- Max. Charge Current: 5.0 A
- Max. Charge Voltage: 12.6 V
- Max. Discharge Current: 8.0 A
Get Free Quote
Back to Product List
Product Details
Product Features
- 3S3P Removable Lithium-ion Battery Pack
- Complies with regulations in multiple regions worldwide
- Standard SMBus v1.1 interface
- Integrated LED State of Charge (SOC) indicator
- Meets JEITA charging optimization rules
- Comprehensive safety protection features, including overcharge, over-discharge, overcurrent, over-temperature, and short circuit protection
- Equipped with balancing function to effectively improve battery life
- TI Precise Battery Calculation
Product Application Areas
- Class III Medical Devices
- Precision Measuring Instruments
- Industrial Computers
- Non-destructive Testing Equipment
- Portable industrial and medical devices, etc.
Technical Parameters
| Overview | |
| Initial Shipment Capacity | 20%~30% |
| Certifications | CE/FCC/IEC62133/UN38.3/PSE/UKCA/REACH/RoHS/ (EU) 2023/1542/GOST-R/CCC |
| Operating Temperature | 0°C ~ 50°C (Charge) -20°C ~ 60°C (Discharge) |
| Storage Temperature | -20°C ~ 50°C (Max) -20°C ~ 25°C (Recommended) |
| Electrical Performance | |
| Nominal Voltage | 10.8V |
| Rated Capacity | 9000mAh |
| Typical Capacity | 9300mAh |
| Internal Resistance | <200mΩ @ 1kHz at 25°C |
| Max. Charge Current | 5.0A |
| Max. Charge Voltage | 12.6V |
| Max. Discharge Current | 8.0A |
| Cycle Life | 1000 cycles >70% of rated capacity (Test standard: CC/CV charge 4.5A/12.6V; CC discharge 1.8A to 7.5V @ 25°C) |

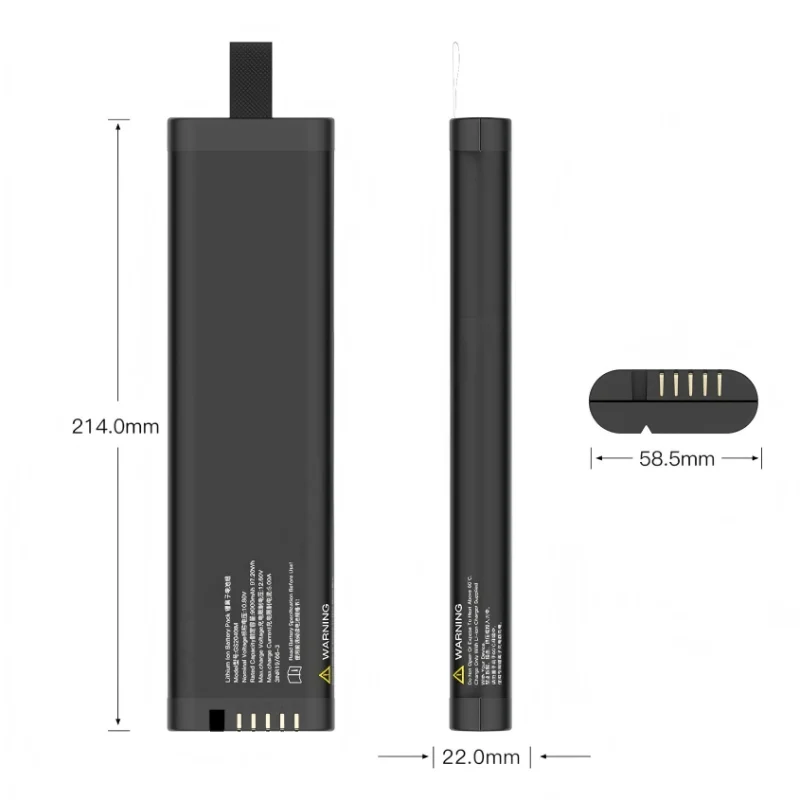

| Size Specifications | |
| Length | 214.0mm ± 0.3mm |
| Width | 58.5mm ± 0.3mm |
| Thickness | 22.0mm ± 0.3mm |
| Weight | 495g±10g |
| Interface |  |
